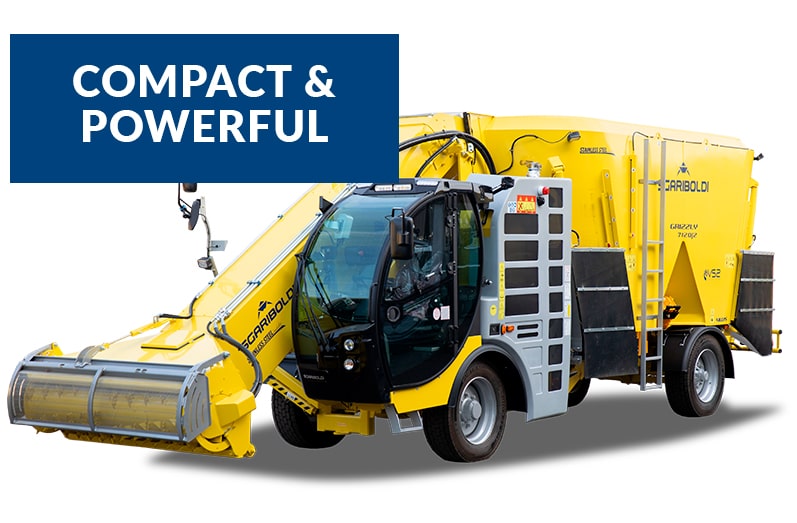

GRIZZLY 7100
SELF-PROPELLED VERTICAL SINGLE OR TWIN AUGER – FROM 18 to 30 m³
Equipped with vertical technolgy with one or two augers, GRIZZLY 7100 is back on the market in a new and improved version, perfect to meet the requirements of farmers who need a compact size machine but capable of grat performance.
ALSO AVAILABLE WITHOUT CONVEYOR ARM
COMPACT & POWERFUL
Being an intermediate solution between the 6000 series and 8000 series, 7000 series is the result of an accurate design which, accompanied by first-rate components, allows maximum performance with reduced power consumption, significant energy
savings and maximum agility thanks to its small size.
FEATURES
- The 218 hp 4-cylinder VOLVO STAGE V engine is placed transversely between the cab and the mixing tank in order to offer an excellent working
view and ideal weight distribution - Equipped with FAN DRIVE, an intelligent device that carries out an electronic control on the cooling needs of the diesel engine allowing significant fuel savings and a remarkable noise reduction
- The hydraulic oil cooler built into the diesel engine cooler allows less maintenance and a greater reliability
- The limited-slip front axle allows a steering angle of almost 40 degrees, ensuring great handling, that can be further increased by the 4-wheel steering (optional). The 4-wheel-drive version is also
available as an option.
- Reversible Fan Drive for the diesel engine cooler
- Discharge by chain elevator in the left front side
- Loading arm with inox plates in wearing areas
- Ventilation and heating system
- Electronic control of discharge elevator speed
- 2 speeds of the auger
- 2 speeds of loading elevator
- Retainer ring in the hopper
- Weighing system whth programmable monitor
- Wheel drive with automatic motor (0 – 25 km/h)
- Stronger framer with engine transversal between cab and tank
- Retainer ring in the hopper
- Differential lock limited-slip
- Grammer Maximo Comfort air ride seat with heating intergrated
- Wiper Blade right side cabin
- Video camera for reverse gear (integrated on the display)
- Cab Renesis II
| GRIZZLY 7118/1 | GRIZZLY 7120/1 | GRIZZLY 7122/1 | |
|---|---|---|---|
| Capacity m³ | 18 | 20 | 22 |
| Number of augers | 1 | 1 | 1 |
| Wheel drive | Front | Front | Front |
| Length | 8300 | 8200 | 8100 |
| Max. width (mm) | 2800 | 2800 | 2800 |
| Height at the mixing tank (mm) | 3220 | 3420 | 3620 |
| Max height during driving phase – loading drum 400 mm from the ground (mm) | 3450 | 3650 | 3750 |
| Loading drum width (mm) | 1900 x 600 | 1900 x 600 | 1900 x 600 |
| Loading height (mm) | 5500 | 5500 | 5500 |
| Front wheels (mm) | 385/55-22.5 | 385/55-22.5 | 385/55-22.5 |
| Rear wheels | 385/55-22.5 | 385/55-22.5 | 385/55-22.5 |
| 4-cylinder VOLVO Diesel engine | 160/217 | 160/217 | 160/217 |
| Drive speed (Km/h) | 0 – 30 | 0 – 30 | 0 – 30 |
| Weight (Kg) | 13000 | 13400 | 13800 |
| GRIZZLY 7120/2 | GRIZZLY 7122/2 | GRIZZLY 7125/2 | |
|---|---|---|---|
| Capacity m³ | 20 | 22 | 25 |
| Number of augers | 2 | 2 | 2 |
| Wheel drive | Front | Front | Front |
| Length (mm) | 10200 | 10400 | 10250 |
| Max. width (mm) | 2500 | 2500 | 2550 |
| Height at the mixing tank (mm) | 2880 | 3080 | 3080 |
| Max height during driving phase – loading drum 400 mm from the ground (mm) | 3150 | 3330 | 3330 |
| Loading drum width | 1900 x 600 | 1900 x 600 | 1900 x 600 |
| Loading height (mm) | 5500 | 5500 | 5500 |
| Front wheels (mm) | 385/55 R22.5 | 385/55 R22.5 | 445/50 R.22.5 |
| Rear wheels (mm) | 385/55 R22.5 | 385/55 R22.5 | 445/50 R.22.5 |
| 4-cylinder VOLVO Diesel engine (KV/HP) | 160/217 | 160/217 | 160/217 |
| Drive speed (Kg) | 0 – 30 | 0 – 30 | 0 – 30 |
| Weight | 13500 | 13900 | 14400 |
Designed to preserve the structure of the products as far as possible, this system treats each raw material according to its specific structure and mixes it optimally, by completely eliminating friction during each mixing phase.
