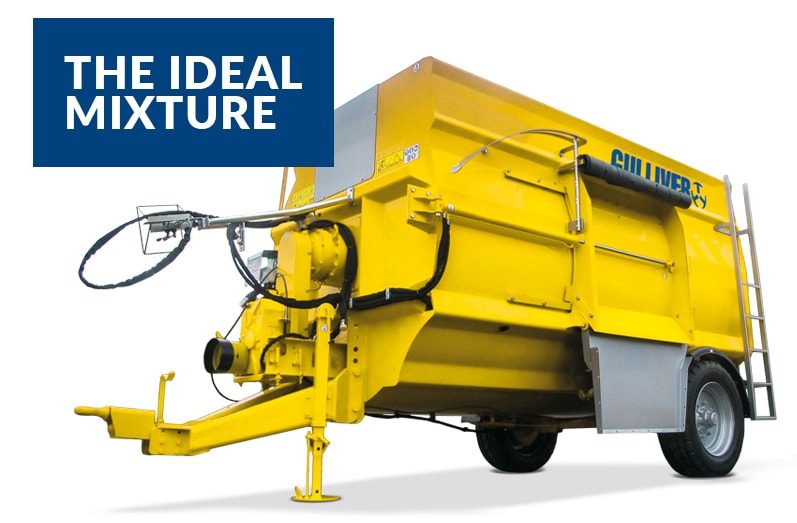

Trailed Gulliver
Trailed Gulliver
TRAILED MACHINE WITH PADDLE SYSTEM – FROM 11 to 21 m³
Equipped with Gulliver paddle technology, the Gulliver trailed diet feeder stands out thanks to its top quality mixtures and its large volume.
ALSO AVAILABLE IN STATIONARY VERSION WITH AN ELECTRIC OR DIESEL ENGINE
THE IDEAL MIXTURE
- The paddle system gently processes each ingredient,preserving its specific structure
- The soft and even mixture produced has been certified by renowned international organisations.
SUPERIOR COMPONENTS
- Reliability
- Durability
THE TOP OF THE LINE
- Make full use of the tank capacity
- Extra thick steel tank and structure
- Weighing system with a single-setting display
TECH SPECS EUROPE
11 TR | 14 TR | 18 TR | 21 TR | |
---|---|---|---|---|
Capacity (m³) | 11 | 14 | 18 | 21 |
Length (mm) | 4800 | 5800 | 6500 | 7000 |
Width (mm) | 1900 | 2200 | 2500 | 2500 |
Height (mm) | 2450 | 2600 | 2900 | 2900 |
External track (mm) | 1850 | 2100 | 2500 | 2500 |
Wheels | 285/70-19.5 | 315/70-22.5 | 15-R22.5 | 15-R22.5 |
Power requirement (kW/HP) | 45/60 | 59/80 | 67/90 | 73/100 |
Weight (Kg) | 3500 | 4000 | 5000 | 5500 |
TECH SPECS USA
14 TR | 18 TR | 21 TR | |
---|---|---|---|
Capacity (cu.ft.) | 494 | 636 | 742 |
Length (inch) | 236 | 252 | 276 |
Width (inch) | 94 | 98 | 98 |
Height (inch) | 106 | 114 | 114 |
Height of lowered versions (inch) | by request | by request | by request |
External track (inch) | 94 | 98 | 98 |
Wheels | 315/70-22.5 | 15-R22.5 | 15-R22.5 |
Power requirement (kW/HP) | 59/80 | 67/90 | 73/100 |
Weight (lbs) | 9921 | 11023 | 12125 |
Machine Equipment
- Mixing system with paddles and cylindrical horizontal tank
- Optimal use of the mixing tank capacity
- Mixing tank of high thickness steel
- Adjustable drawbar
- Discharge door and discharge elevator operated by tractor hydraulic spool valves (requested oil flow rate 20 l/min at 140 bar)
- Weighing system with not programmable monitor
- Self-contained hydraulic system Mechanical parking brake
- Hand operated side foot
- Two speed gearbox for the auger
- Remote control of auger speed gearbox with Bowden cable
Technology
Designed to preserve the structure of the products as far as possible, this system treats each raw material according to its specific structure and mixes it optimally, by completely eliminating friction during each mixing phase.
