Grizzly 6100

Grizzly 6100

SELF-PROPELLED VERTICAL SINGLE OR TWIN AUGER – FROM 10 TO 18 m³

Sgariboldi Grizzly 6000 - SELF-PROPELLED VERTICAL SINGLE OR TWIN AUGER

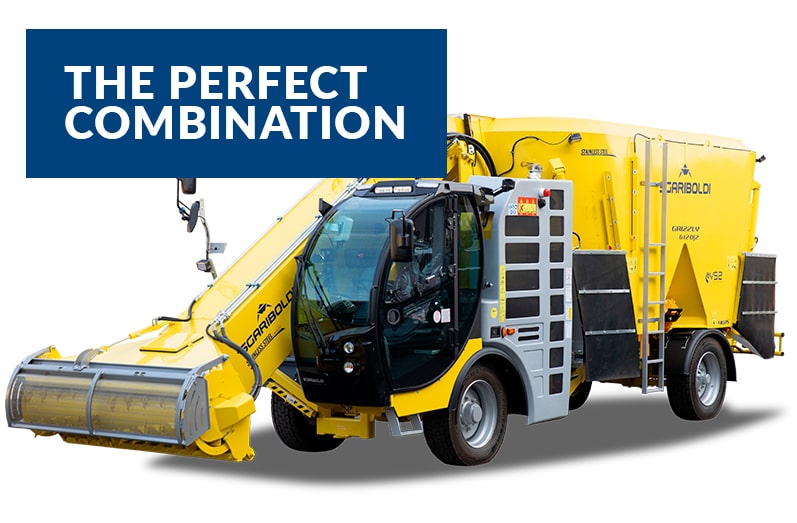

Equipped with a single or twin auger vertical mixing system, the Grizzly 6000 is a latest-generation machine; designed in response to direct requests from farmers, it offers the perfect combination of compact size, manoeuvrability and performance.


AVAILABLE ON REQUEST ON THE VERSION WITHOUT LOADING SYSTEM


AGILE AND COMPACT
    Perfect for small and medium-sized farms, its remarkably compact design makes it easy to manoeuvre in even the tightest spaces.

  • Centrally positioned 4-cylinder engine
  • Front-wheel drive
  • Hood in the front area can be opened fully
  • 4-wheel steering or 4-wheel drive (optional)

STANDARD INNOVATIVE SOLUTIONS
  • Reversible Fan Drive for electronic control of the required diesel engine cooling
  • One of the most advanced hydraulic systems on the market
  • Hydraulic oil exchanger integrated into diesel engine
Tech Specs EUROPE





GRIZZLY 6100 – ONE AUGER
Grizzly 6110/1 Grizzly 6112/1 Grizzly 6114/1 Grizzly 6116/1
Volume (m³) 10 12 14 16
Number of augers 1 1 1 1
Wheel drive axle type S150 L=1774 Front Front Front Front
Lenght (mm) 8500 8700 8800 9000
Width (mm) 2350 2500 2500 2500
Height (mm) 2800 2950 3150 3350
With of loading drum x width of elevator (mm) 1900×600 1900×600 1900×600 1900×600
Loading drum working height (mm) 4750 4750 4750 4700
Front wheels 285/70-19,5 285/70-19,5 315/60-22,5 315/60-22,5
Rear wheels 285/70-19,5 285/70-19,5 315/60-22,5 315/60-22,5
Number of rear wheels 2 2 2 2
Front exterior track (mm) 2100 2100 2100 2100
Rear exterior track 4WS rap.1/1 (mm) 2200 2200 2200 2200
4-cylinder VOLVO Diesel engine TAD571VE Stage IV (Kw/HP) 129/175 129/175 129/175 129/175
Weight (Kg) 8000 9000 9500 10000
GRIZZLY 6100 – TWO AUGERS
Grizzly 6114/2 Grizzly 6116/2 Grizzly 6118/2
Capacity (m³) 14 16 18
Number of augers 2 2 2
Wheel drive axle type S150 L=1774 Front Front Front
lenght (mm) 10300 10500 10500
Width (mm) 2200 2200 2200
Height (mm) 2600 2800 3000
Width of loading drum x width of elevator (mm) 1900×600 1900×600 1900×600
Loading drum working height (mm) 4750 4750 4750
Front exterior track (mm) 2100 2100 2100
Front wheels 315/60-22,5 315/60-22,5 315/60-22,5
Rear exterior track 4WS rap.1/1 (mm) 2200 2200 2200
Rear wheels 315/60-22,5 315/60-22,5 315/60-22,5
Number of rear wheels 2 2 2
4-cylinder VOLVO Diesel engine TAD571VE Stage IV (Kw/HP) 129/175 129/175 129/175
Weight (Kg) 10000 10500 11000



Tech Specs - One Auger USA



GRIZZLY 6100 – ONE AUGER
Grizzly 6110/1 Grizzly 6112/1 Grizzly 6114/1 Grizzly 6116/1
Capacity (cu.ft) 353 24 494 565
Number of augers 1 1 1 1
Wheel drive axle type S150 L=1774 Front Front Front Front
Lenght (inch) 335 343 346 354
Width (inch) 93 98 98 98
Height (inch) 110 116 124 132
With of loading drum x width of elevator (inch) 74,8×23,6 74,8×23,6 74,8×23,6 74,8×23,6
Loading drum working height (inch) 187 187 187 185
Front wheels 285/70-19,5 315/60-22.5 315/60-22.5 315/60-22.5
Rear wheels 285/70-19,5 285/70-19,5 315/60-22,5 315/60-22,5
Number of rear wheels 2 2 2 2
Front exterior track (inch) 83 83 83 83
Rear exterior track 4WS rap.1/1 (inch) 87 87 87 87
4-cylinder VOLVO Diesel engine TAD571VE Stage IV (Kw/HP) 129/175 129/175 129/175 129/175
Weight (lbs) 17637 19842 20944 22046
GRIZZLY 6100 – TWO AUGERS
Grizzly 6114/2 Grizzly 6116/2 Grizzly 6118/2
Capacity (cu.ft.) 494 565 636
Number of augers 2 2 2
Wheel drive axle type S150 L=1774 Front Front Front
lenght (mm) 10300 10500 10500
Width (mm) 2200 2200 2200
Height (mm) 2600 2800 3000
Width of loading drum x width of elevator (mm) 1900×600 1900×600 1900×600
Loading drum working height (mm) 4750 4750 4750
Front exterior track (mm) 2100 2100 2100
Front wheels 315/60-22,5 315/60-22,5 315/60-22,5
Rear exterior track 4WS rap.1/1 (mm) 2200 2200 2200
Rear wheels 315/60-22,5 315/60-22,5 315/60-22,5
Number of rear wheels 2 2 2
4-cylinder VOLVO Diesel engine TAD-41VE Stage IV (Kw/HP) 129/175 129/175 129/175
Weight (Kg) 10000 10500 11000



Machine equipment
    • One or two augers
    • Reversible Fan Drive for the diesel engine cooler
    • Discharge by chain elevator in the left front side
    • Loading arm with inox plates in wearing areas
    • Ventilation and heating system
    • Electronic control of discharge elevator speed
    • 2 speeds of the auger
    • Retainer ring in the hopper
    • Weighing system whth programmable monitor
    • Loading arm rest, with hydraulic control
    • 2 driving speeds (0 – 5 / 0 – 20 km/h)
Technology

vs2 sgariboldiSgariboldi develops compact vertical diet feeders with exceptional design and maintenance features, ideal for breaking down and rapidly cutting bales of fodder of any size, shape, and weight, and are suitable for any work requirements.
