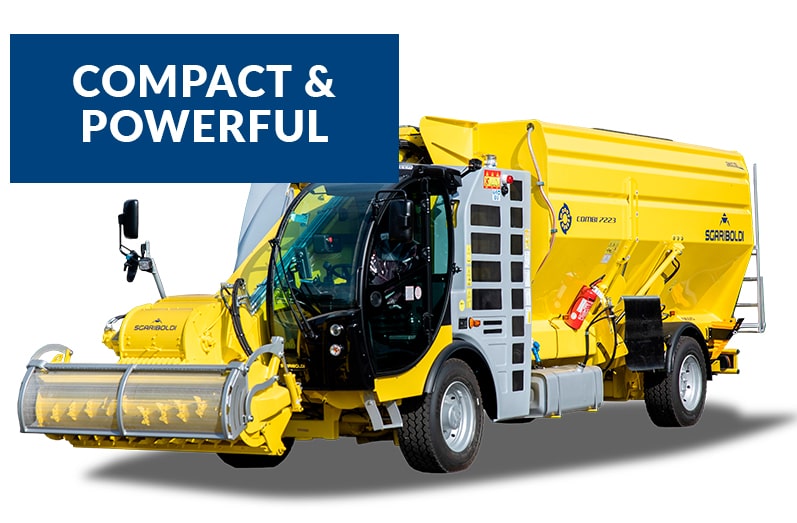

COMBI 7200
SELF-PROPELLED HORIZONTAL SINGLE AUGER – FROM 17 to 23 m³
Equipped with patended Monofeeder technology, COMBI 7200 is back on the market in a new and improved version, perfect to meet the requirements of farmers who need a compact size machine but capable of great performance.
ALSO AVAILABLE WITHOUT CONVEYOR ARM
COMPACT & POWERFUL
Being an intermediate solution between the 6000 series and 8000 series, 7000 series is the result of an accurate design which, accompanied by first-rate components, allows maximum performance with reduced power consumption, significant energy savings and maximum agility thanks to its small size.
FEATURES
- The 218 hp 4-cylinder VOLVO STAGE V engine
is placed transversely between the cab and the
mixing tank in order to offer an excellent working
view and ideal weight distribution - Equipped with FAN DRIVE, an intelligent device
that carries out an electronic control on the cooling
needs of the diesel engine allowing significant fuel
savings and a remarkable noise reduction - The hydraulic oil cooler built into the diesel engine
cooler allows less maintenance and a greater
reliability - The limited-slip front axle allows a steering angle
of almost 40 degrees, ensuring great handling, that
can be further increased by the 4-wheel steering
(optional). The 4-wheel-drive version is also
available as an option
- Reversible Fan Drive for the diesel engine cooler
- Loading arm with inox plates in wearing areas
- Ventilation and heating system
- Electronic control of discharge elevator speed
- Weighing system with programmable monitor
- wheel drive with automatic motor (0 – 30 km/h)
- 2 speeds of loading elevator
- Differential lock limited-slip
- Stronger framer with engine transversal between cab and tank
- Grammer Maximo Comfort air ride seat with heating intergrated
- Wiper Blade right side cabin
- video camera for reverse gear (integrated on the display)
- Cab Renesis II
| COMBI 7217 | COMBI 7220 | COMBI 7223 | |
|---|---|---|---|
| Capacity m³ | 17 | 20 | 23 |
| Front wheel drive axle OMSI 432 8 col | Front | Front | Front |
| Length (mm) | 9600 | 10000 | 10800 |
| Max. width (mm) | 2500 | 2550 | 2550 |
| Height (mm) | 2850 | 3050 | 3100 |
| Loading drum width (mm) | 1900 x 600 | 1900 x 600 | 1900 x 600 |
| Loading height (mm) | 5100 | 5300 | 5300 |
| Front and rear wheels (mm) | 385/55 R22.5 | 385/55 R22.5 | 385/55 R22.5 |
| Diametro coclea (mm) | 870 | 960 | 1060 |
| Auger diameter | 820 x 800 | 1020 x 1000 | 1020 x 1000 |
| 4-cylinder VOLVO Diesel engine- TAD-582VE Stage V (KV/HP) | 160/218 | 160/218 | 160/218 |
| Weight (Kg) | 11000 | 12300 | 13500 |
This advanced cutting and mixing system, with a single large horizontal auger, guarantees maximum operational reliability, on one of the most compact machines on the market.
