CUSTOMER PROFILE

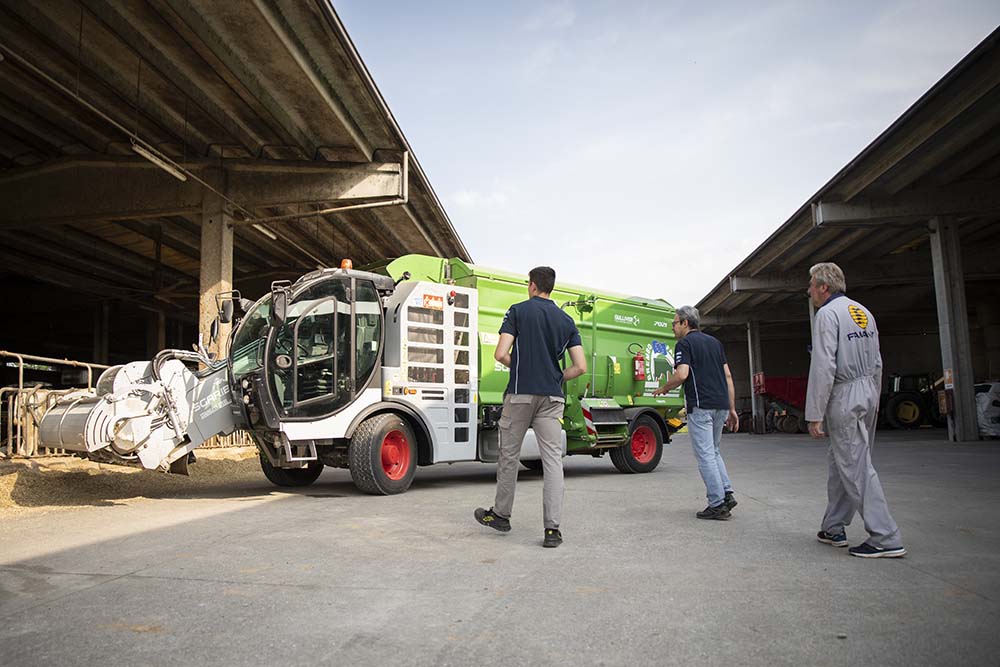

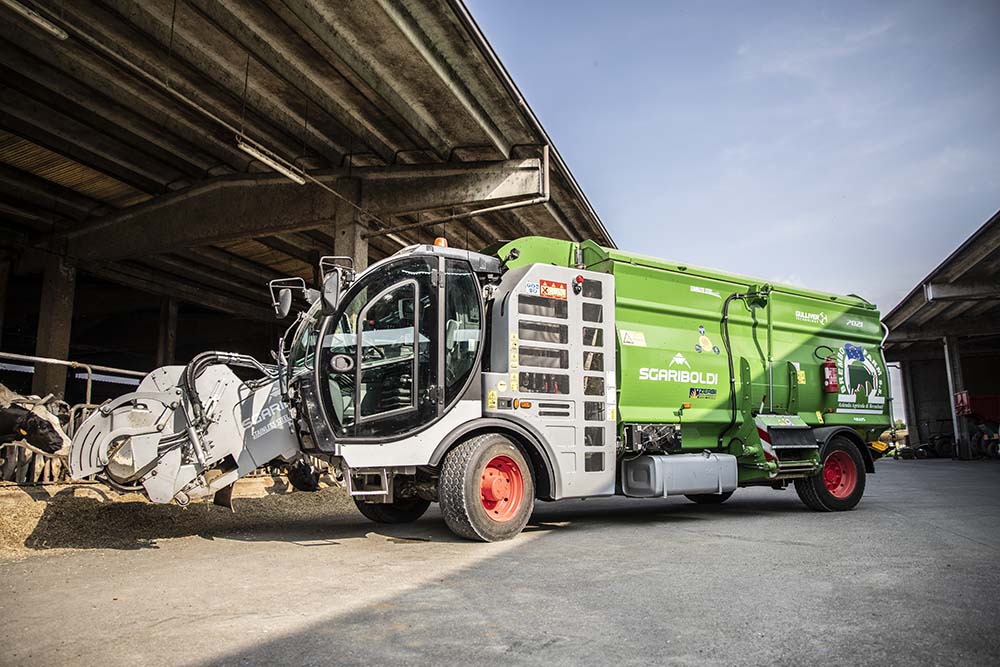

"The main advantage that we have noticed since we have been producing our TMR using the Sgariboldi Gulliver has undoubtedly been the increased ingestion by our livestock, which has resulted in a natural increase in milk production."
- Low discharge door, vertical slide and chain discharge elevator
- Reversible Fan Drive for the diesel engine cooler
- 2 speeds of the auger
- 2 speeds of loading elevator
- Loading arm with inox plates in wearing areas
- Ventilation and heating system
- Electronic control of discharge elevator speed
- Weighing system with programmable monitor
- Wheel drive with automatic motor – 0 – 30 km/h
- Differential lock limited-slip
- Stronger framer with engine transversal between cab and tank
- Grammer Maximo Comfort air seat with heating intergrated
- Wiper Blade right side cabin
- Video camera for reverse geat (integrated on the display)
Rotating magnet on the discharge elevator
I-Cab II
Volvo diesel engine
218 hp
Slasher on the loading arm - width 600 mm
Tank cover
Customized colour
Intellitechnology
Road homologation
4.0 kit
Dry pack - PTM
| GULLIVER 7018 | GULLIVER 7021 | GULLIVER 7025 | |
|---|---|---|---|
| Capacity m³ | 18 | 21 | 25 |
| Wheel drive | Front | Front | Front |
| Length (mm) | 10300 | 10800 | 10000 |
| Max. width (mm) | 2500 | 2500 | 2700 |
| Height (mm) | 2850 | 2850 | 3550 |
| Loading drum width (mm) | 1900 x 600 | 1900 x 600 | 1900 x 600 |
| Loading height (mm) | 5300 | 5300 | 5300 |
| Front and rear wheels (mm) | 385/55 R22.5 | 385/55 R22.5 | 445/50 R22.5 |
| 4-cylinder VOLVO Diesel engine- TAD-582VE Stage V (KV/HP) | 160/218 | 160/218 | 160/218 |
| Weight (Kg) | 12000 | 13000 | 14000 |
