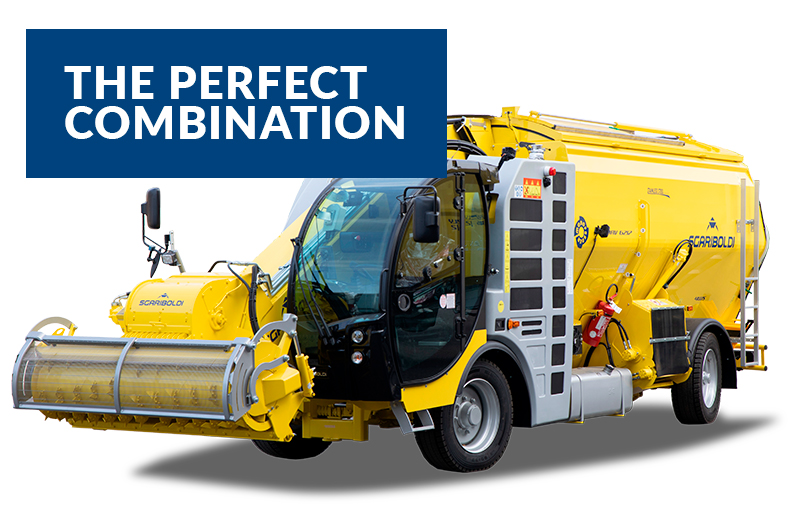

MAV 6200
SELF-PROPELLED HORIZONTAL SINGLE AUGER – FROM 11 to 17 m³
Equipped with patented Monofeeder technology, MAV 6200 is the ideal mixer for small and medium- sized farms, a perfect combination of compactness, agility and performance.
ALSO AVAILABLE WITHOUT CONVEYOR ARM
Agile and compact
The exceptional dimensions allow the maximum maneuverability, even in the most narrow spaces. The machine’s excellent handling can be improved with the optional 4 wheel drive and steering systems.
INNOVATIVE SOLUTIONS
- EThe 175 hp 4-cylinder VOLVO STAGE V engine is placed transversely between the cab and the tank in order to offer an excellent working view and ideal weight distribution
- Equipped with FAN DRIVE, an intelligent device that carries out an electronic control on the cooling needs of the diesel engine allowing significant fuel savings and a remarkable noise reduction.
- The hydraulic oil cooler built into the diesel engine cooler allows less maintenance and a greater reliability
- Reversible Fan Drive for the diesel engine cooler
- Loading arm with inox plates in wearing areas
- Ventilation and heating system
- Electronic control of discharge elevator speed
- Weighing system with programmable monitor
- 2 speeds of loading elevator
- wheel drive with automatic motor ( 0 – 20 km/h)
- Wiper Blade right side cabin
- Video camera for reverse gear (integrated on the display)
- Cab Renesis II
| MAV 6211 | MAV 6214 | MAV 6217 | |
|---|---|---|---|
| Capacity (m³) | 11 | 14 | 17 |
| Front wheel drive axle S150 type | Axle width L=1754 | Axle width L=1754 | Axle width L=1754 |
| Lenght (mm) | 9000 | 10000 | 10500 |
| Max. width (mm) | 2180 | 2180 | 2180 |
| Height (mm) | 2600 | 2700 | 2750 |
| Loading drum width (mm) | 1900×600 | 1900×600 | 1900×600 |
| Loading height (mm) | 4750 | 4750 | 4750 |
| Front and rear wheels | 285/70-19,5 | 315/60-22,5 | 315/60-22,5 |
| Front exterior track (mm) | 2060 | 2100 | 2100 |
| Rear exterior track 4WS rap. 1/1 (mm) | 2050 | 2180 | 2280 |
| Auger diameter (mm) | 770 | 870 | 870 |
| Left side discharge by chain elevator | 670×800 | 820×800 | 820×800 |
| 4-cylinder VOLVO Diesel engine-TAD580VE Stage V | 129/175 | 129/175 | 129/175 |
| Weight (Kg) | 9000 | 9500 | 10000 |
This advanced cutting and mixing system, with a single large horizontal auger, guarantees maximum operational reliability, on one of the most compact machines on the market.
