Kodiak
Kodiak

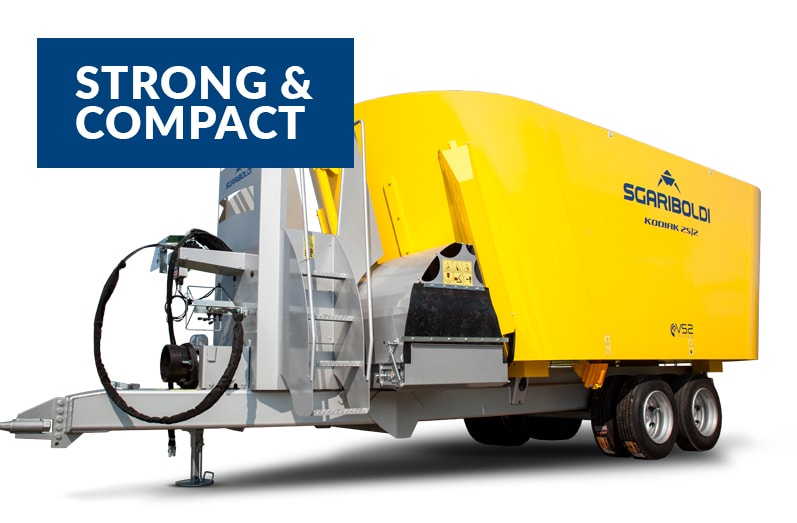

TRAILED VERTICAL SINGLE OR TWIN AUGER – FROM 10 TO 48 M³
Equipped with a vertical single or twin auger mixing system designed for medium to large farms, the Kodiak has proven itself an incredibly versatile, practical and reliable machine which offers exceptional productivity with low maintenance.
ALSO AVAILABLE IN A STATIONARY VERSION WITH AN ELECTRIC OR DIESEL ENGINE
QUICK AND EFFICIENT CUTTING
- Special auger with continuous spiral screws
- Special toothed blades
- Extra thick tank walls and bottom
ROBUST AND FUNCTIONAL TANK
- Extra thick walls and buttom
- Highly resistant, stainless steel square cells for the weighing system
- Optional STAINLESS STEEL covers and SPECIAL STEEL SET
Tech Specs EUROPE
ONE AUGER
| 10/1 | 12/1 | 14/1 | 16/1 | 18/1 | 20/1 | 22/1 | |
|---|---|---|---|---|---|---|---|
| Capacity (m³) | 10 | 12 | 14 | 16 | 18 | 20 | 22 |
| Quantity of augers | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Length (inch) | 5500 | 5650 | 5650 | 5650 | 6150 | 6150 | 6150 |
| Width max (mm) | 2350 | 2500 | 2500 | 2500 | 2800 | 2800 | 2800 |
| Height (mm) | 2700 | 2850 | 3050 | 3200 | 3000 | 3200 | 3400 |
| Wheel track (mm) | 1550 | 1700 | 1700 | 1700 | 2000 | 2000 | 2000 |
| Quantity of axles | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Quantity of wheels | 2 | 2 | 2 | 4 | 4 | 4 | 4 |
| Wheels size | 245/70-17.5 | 245/70-17.5 | 245/70-17.5 | 215/75-17,5 | 215/75-17,5 | 215/75-17,5 | 215/75-17,5 |
| Required power (HP) | 60 | 70 | 80 | 90 | 100 | 110 | 120 |
| PTO revs (rpm) | 540 | 540 | 540 | 540 | 540 | 540 | 540 |
| Weight (kg) | 4000 | 4700 | 5400 | 5700 | 6200 | 6400 | 6700 |
TWO AUGERS
| 16/2 | 20/2 | 25/2 | 30/2 | 35/2 | 40/2 | |
|---|---|---|---|---|---|---|
| Capacity (m³) | 16 | 20 | 25 | 30 | 35 | 40 |
| Quantity of augers | 2 | 2 | 2 | 2 | 2 | 2 |
| Length (mm) | 7300 | 7600 | 8000 | 8100 | 8200 | 8800 |
| Width max. (mm) | 2100 | 2350 | 2500 | 2500 | 2500 | 2800 |
| Height (mm) | 2650 | 2650 | 2850 | 3100 | 3400 | 3450 |
| Wheel track (mm) | 1550 | 1600 | 1700 | 1700 | 1700 | 2000 |
| Quantity of axles | 1 | 1 | 2 | 2 | 2 | 2 |
| Quantity of wheels | 4 | 4 | 8 | 8 | 8 | 8 |
| Wheels size | 215/75-17,5 | 215/75-17,5 | 215/75-17,5 | 215/75-17,5 | 215/75-17,5 | 215/75-17,5 |
| Required power (HP) | 80 | 110 | 130 | 150 | 150 | 180 |
| PTO revs (rpm) | 540 | 540 | 540 | 540 | 540 | 540 |
| Weight (kg) | 6600 | 7000 | 9500 | 10000 | 10500 | 12000 |
THREE AUGERS
| 40/3 | 45/3 | 48/3 | |
|---|---|---|---|
| Capacity (m³) | 40 | 45 | 48 |
| Number of augers | 3 | 3 | 3 |
| Length (mm) | 11200 | 11500 | 12000 |
| Width (mm) | 2500 | 2500 | 2500 |
| Height (mm) | 3000 | 3400 | 3600 |
| Wheel track (mm) | 2450 | 2450 | 2450 |
| Number of axels | 2 | BOGIE TRIDEM | BOGIE TRIDEM |
| Number of fixed axels | 1 | 1 | 1 |
| Number of steering axels | 1 | 2 | 2 |
| Pneumatic brakes and springs | Optional – O09 | Standard | Standard |
| Wheels size | 215/75-17,5 | 385/55-19,5 | 385/55-19,5 |
| Number of wheels | 8 twins | 6 single wheels | 6 single wheels |
| Number of load cells | 6 | 6 | 6 |
| Required power (HP) | 180 | 200 | 220 |
| PTO revs (rpm) | 540 | 540 | 540 |
| Weight (kg) | 13500 | 15000 | 16000 |
Tech Specs USA
ONE AUGER
| 10/1 | 12/1 | 14/1 | 16/1 | 18/1 | 20/1 | 22/1 | |
|---|---|---|---|---|---|---|---|
| Capacity (cu.ft.) | 353 | 424 | 494 | 565 | 636 | 706 | |
| Quantity of augers | 1 | 1 | 1 | 1 | 1 | 1 | |
| Length (inch) | 217 | 222 | 222 | 222 | 242 | 242 | |
| Max width (inch) | 93 | 98 | 98 | 98 | 110 | 110 | 110 |
| Height (inch) | 106 | 112 | 120 | 126 | 118 | 126 | 134 |
| Lowered versions (inch) | By request | By request | By request | By request | By request | By request | By request |
| Wheel track (inch) | 61 | 67 | 67 | 67 | 79 | 79 | 79 |
| N° of axles | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| N° of wheels | 2 | 2 | 2 | 4 | 4 | 4 | 4 |
| Wheels | 15.0/55-17 | 15.0/55-17 | 15.0/55-17 | 215/75-17,5 | 215/75-17,5 | 215/75-17,5 | 215/75-17,5 |
| Required power (HP) | 60 | 70 | 80 | 90 | 100 | 110 | 120 |
| PTO revs (rpm) | 540 | 540 | 540 | 540 | 540 | 540 | |
| Weight (lbs) | 8818 | 10362 | 11905 | 12566 | 13669 | 14110 | 14771 |
TWO AUGERS
| 16/2 | 20/2 | 25/2 | 30/2 | 35/2 | 40/2 | |
|---|---|---|---|---|---|---|
| Capacity (cu.ft.) | 565 | 706 | 883 | 1059 | 1236 | 1413 |
| Quantity of augers | 2 | 2 | 2 | 2 | 2 | 2 |
| Length (inch) | 287 | 299 | 315 | 319 | 322,8 | 346 |
| Max width (inch) | 83 | 92 | 98 | 98 | 98 | 110 |
| Height (inch) | 104 | 104 | 112 | 122 | 134 | 136 |
| Lowered versions | By request | By request | By request | By request | By request | By request |
| Wheel track (inch) | 61 | 63 | 67 | 67 | 67 | 79 |
| N° of axles | 1 | 2 | 2 | 2 | 2 | 2 |
| N° of wheels | 4 | 8 | 8 | 8 | 8 | 4 |
| Wheels | 215/75-17,5 | 215/75-17,5 | 215/75-17,5 | 215/75-17,5 | 215/75-17,5 | 385-17,5 |
| Required power (HP) | 80 | 110 | 130 | 150 | 150 | 180 |
| PTO revs (rpm) | 540 | 540 | 540 | 540 | 540 | 540 |
| Weight (lbs) | 14550 | 15432 | 20944 | 22046 | 23419 | 26455 |
Machine equipment
- Vertical mixer-feeder with one, two or three augers
- Floor 20 mm thick, side plates 8 mm, auger flights 15 mm
- Vertical auger(s) with special knives for quick processing of bales of any type
- Modular chassis
- Adjustable drawbar
- Discharge to the right and to the left through a front hatch and a cross chain elevator in stainless steel
- Two hydraulic counter knives
- Industrial epicycloidal gearbox
- Gearbox with two auger speeds
- hydraulic side jack
- Self-contained hydraulic system (pump and oil tank) with controls door and discharge elevator
- Controls by Bowden cables
- Retainer ring
- Weighing system not programmable monitor and square stainless steel load cells
- Protected PTO shaft
- Non-breaking axle
Video
Technology
Designed to preserve the structure of the products as far as possible, this system treats each raw material according to its specific structure and mixes it optimally, by completely eliminating friction during each mixing phase.
