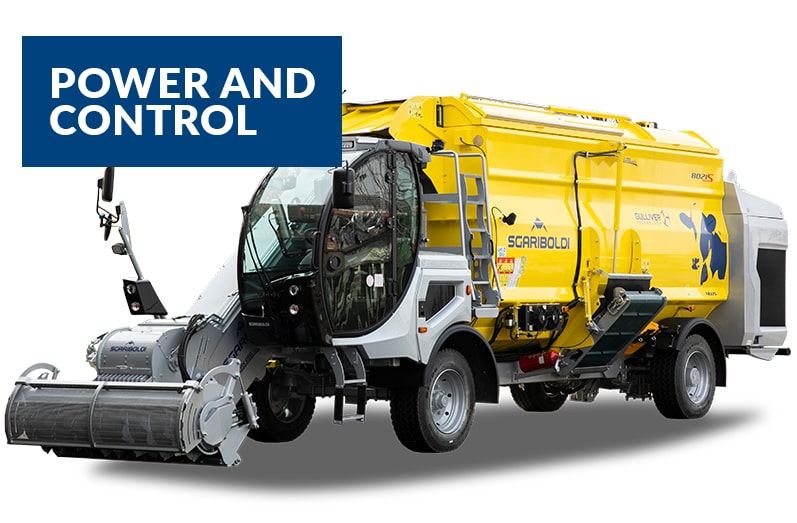

GULLIVER 8000 S
SELF-PROPELLED MACHINE WITH PADDLES SYSTEM – FROM 18 TO 31 m³
Equipped with horizontal paddle technology and specifically designed to ensure an excellent mixture, the GULLIVER 8000 S series is characterized by high performance and large volume.
ALSO AVAILABLE WITHOUT CONVEYOR ARM
- New design: a sleek new look that embodies the Sgariboldi design philosophy, as well as offering an emotional experience to our customers
- A vastly improved and enhanced hydraulic system that limits dispersions and guarantees more power availability and lower fuel consumption, unrivaled in performance and efficiency
- Powerful software: conceived with I-Cab II and then transferred to Renesis II, enabling a total interaction with the machine. With an excellent controls standard the operator will experience ease and control like never before.
- Improved load capacity thanks to an excellent weight distribution
- Enhanced cooling of the engine compartment
SOLID AND RELIABLE
- The sturdy and modular frame and the high level components guarantee reliability and durability
- The fully openable of rear diesel engine cover allows the complete access to the diesel engine and the hydrostatic systems
TOP OF THE LINE
- A John Deere 6-cylinder engine positioned at the rear
- Automatic transmission
- Rear wheel drive or 4 wheel drive
- 2 or 4 wheel steering
- Hydraulic suspension with auto-levelling system
- (option)
- Equipped with the most advanced hydraulic system
- A tank cover designed to reduce the amount of dust generated by the mixing system (optional)
- Low discharge door and chain discharge elevator
- Loading arm with inox plates in wearing areas
- 2 speeds of loading elevator
- 2 speeds of the auger
- Ventilation and heating system
- Electronic control of discharge elevator speed
- Weighing system with programmable monitor
- Reversible fan FLEXXAIR for the diesel engine cooler
- Air conditioning
- Grammer seat Maximo Comfort with heating
- Slasher on the loading arm width 600 mm
- wheel drive with automatic motor – (0-20 km/h)
- Wiper Blade right side cabin
- Video camera for reverse gear (integrated on the display)
- Cab Renesis II
| GULLIVER 8018 | GULLIVER 8021 | GULLIVER 8025 | GULLIVER 8028 | GULLIVER 8031 | |
|---|---|---|---|---|---|
| Capacity (m³) | 18 | 21 | 25 | 28 | 31 |
| Wheel drive / Wheel gearbox- axle type: | Rear RF66 | Rear RF66 | Rear OMSI 432/10 | Rear 432/10 | Rear 432/10 |
| Length (mm) | 10000 | 11000 | 10500 | 11000 | 11500 |
| Max. width (mm) | 2550 | 2550 | 2700 | 2700 | 2700 |
| Height (mm) | 3000 | 3000 | 3500 | 3500 | 3500 |
| Loading drum width (mm) | 1900×600 | 1900×600 | 1900×600 | 1900×600 | 1900×600 |
| Loading height (mm) | 5000 | 5000 | 5000 | 5000 | 5000 |
| Front wheels | 385/55-22.5 | 385/55-22.5 | 445/65-22.5 | 445/65-22.5 | 445/65-22.5 |
| Rear wheels | 385/55-22.5 | 385/55-22.5 | 445/65-22.5 | 445/65-22.5 | 445/65-22.5 |
| Front track (mm) | 2200 | 2200 | 2600 | 2600 | 2600 |
| Rear track (mm) | 2550 | 2550 | 2670 | 2670 | 2670 |
| 6-cylinder J.D. Engine 6068HI550 Stage V (KV/HP) | 187/255 | 187/255 | 187/255 | 187/255 | 187/255 |
| Weight (Kg) | 12000 | 13000 | 16000 | 17000 | 18000 |
Designed to preserve the structure of the products as far as possible, this system treats each raw material according to its specific structure and mixes it optimally, by completely eliminating friction during each mixing phase.
