GULLIVER 7000
SELF-PROPELLED HORIZONTAL SINGLE AUGER – FROM 18 to 25 m³
Equipped with horizontal paddle technology and specifically designed to ensure an excellent mixture, the GULLIVER 7000 is back on the market in a new and improved version, perfect to meet the requirements of farmers who need a compact size machine but capable of great performance.
ALSO AVAILABLE WITHOUT CONVEYOR ARM

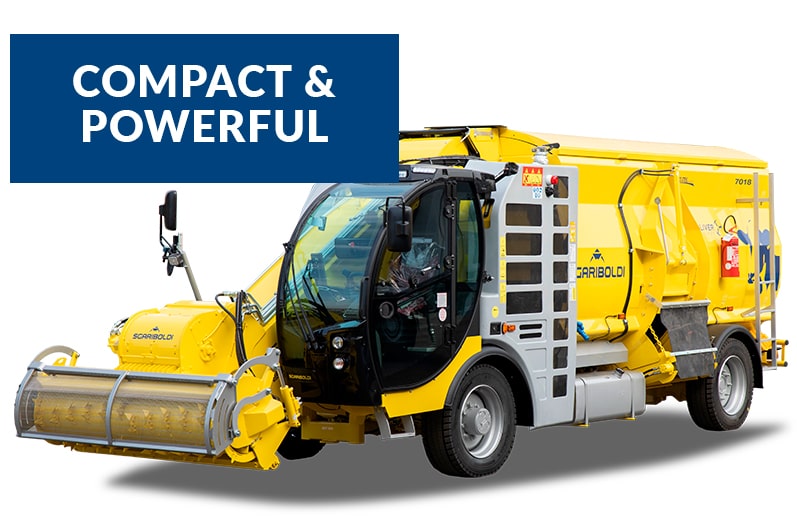

COMPACT & POWERFUL
Being an intermediate solution between the 6000 series and 8000 series, 7000 series is the result of an accurate design which, accompanied by first-rate components, allows maximum performance with reduced power consumption, significant energy savings and maximum agility thanks to its small size.
FEATURES
- The 218 hp 4-cylinder VOLVO STAGE V engine is placed transversely between the cab and the mixing tank in order to offer an excellent working view and ideal weight distribution
- Equipped with FAN DRIVE, an intelligent device needs of the diesel engine allowing significant fuel savings and a remarkable noise reduction
- The hydraulic oil cooler built into the diesel engine cooler allows less maintenance and a greater reliability
- The limited-slip front axle allows a steering angle of almost 40 degrees, ensuring great handling, that can be further increased by the 4-wheel steering (optional). The 4-wheel-drive version is also available as an option.
- Low discharge door, vertical slide and chain discharge elevator
- Reversible Fan Drive for the diesel engine cooler
- 2 speeds of the auger
- 2 speeds of loading elevator
- Loading arm with inox plates in wearing areas
- Ventilation and heating system
- Electronic control of discharge elevator speed
- Weighing system with programmable monitor
- Wheel drive with automatic motor (0 – 30 km/h)
- Differential lock limited-slip
- Stronger framer with engine transversal between cab and tank
- Grammer Maximo Comfort air seat with heating intergrated
- Slasher on the loading arm width 600 mm
- Wiper Blade right side cabin
- Video camera for reverse gear (integrated on the display)
- Cab Renesis II
| GULLIVER 7018 | GULLIVER 7021 | GULLIVER 7025 | |
|---|---|---|---|
| Capacity m³ | 18 | 21 | 25 |
| Front wheel drive axle OMSI 432 8 col | Front | Front | Front |
| Length (mm) | 10300 | 10800 | 10000 |
| Max. width (mm) | 2500 | 2500 | 2700 |
| Height (mm) | 2850 | 2850 | 3550 |
| Loading drum width (mm) | 1900 x 600 | 1900 x 600 | 1900 x 600 |
| Loading height (mm) | 5300 | 5300 | 5300 |
| Front and rear wheels (mm) | 385/55 R22.5 | 385/55 R22.5 | 445/50 R22.5 |
| 4-cylinder VOLVO Diesel engine- TAD-582VE Stage V (KV/HP) | 160/218 | 160/218 | 160/218 |
| Weight (Kg) | 12000 | 13000 | 14000 |
Designed to preserve the structure of the products as far as possible, this system treats each raw material according to its specific structure and mixes it optimally, by completely eliminating friction during each mixing phase.
