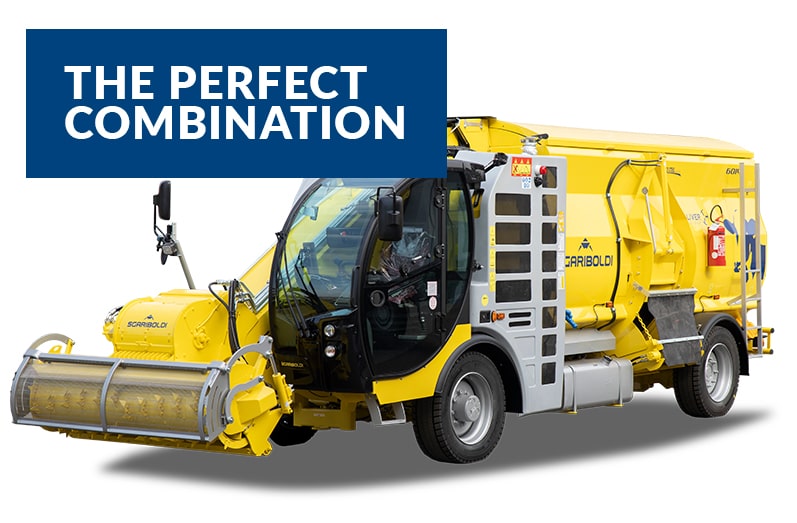

GULLIVER 6000
SELF-PROPELLED MACHINE WITH PADDLE SYSTEM - FROM 11 to 18 m³
Equipped with horizontal paddle system and specifically designed to ensure an excellent mixture, GULLIVER 6000 is ideal for small and medium- sized farms; a perfect combination of compactness, agility and performance.
ALSO AVAILABLE WITHOUT CONVEYOR ARM
AGILE AND COMPACT
The exceptional dimensions allow the maximum maneuverability, even in the most narrow spaces. The machine’s excellent handling can be improved with the optional 4 wheel drive and steering systems.
INNOVATIVE SOLUTIONS
- The 175 hp 4-cylinder VOLVO STAGE V engine is placed transversely between the cab and the tank in order to offer an excellent working view and ideal weight distribution
- Equipped with FAN DRIVE, an intelligent device that carries out an electronic control on the cooling needs of the diesel engine allowing significant fuel savings and a remarkable noise reduction.
- The hydraulic oil cooler built into the diesel engine cooler allows less maintenance and a greater reliability
- Reversible Fan Drive for the diesel engine cooler
- 2 speeds of the auger
- 2 speeds of loading elevator
- Loading arm with inox plates in wearing areas
- Ventilation and heating system
- Electronic control of discharge elevator speed
- Weighing system with programmable monitor
- Wheel drive with automatic motor ( 0 – 20 km/h)
- Slasher on the loading arm width 600 mm
- Wiper Blade right side cabin
- Video camera for reverse gear (integrated on the display)
- Cab Renesis II
| Gulliver 6011 | Gulliver 6014 | Gulliver 6018 | |
|---|---|---|---|
| Capacity (m³) | 11 | 14 | 18 |
| Front wheel drive axle S150 type | Axle width L=1754 | Axle width L=1754 | Axle width L=1754 |
| Length (mm) | 9000 | 10000 | 10500 |
| Max width (mm) | 2180 | 2180 | 2450 |
| Height (mm) | 2600 | 2700 | 2900 |
| Loading drum width (mm) | 1900×600 | 1900×600 | 1900×600 |
| Loading height (mm) | 4750 | 4750 | 4750 |
| Front and rear wheels | 285/70-19.5 | 315/60-22.5 | 315/60-22.5 |
| Front exterior track (mm) | 2060 | 2100 | 2100 |
| Rear exterior track 4WS rap. 1/1 (mm) | 2050 | 2280 | 2450 |
| Low discharge door vertical slide & chain discharge elevator | 670×800 | 820×800 | 820×800 |
| 4-cylinder VOLVO Diesel engine TAD580VE Stage V (kW/HP) | 129/175 | 129/175 | 129/175 |
| Weight (kg) | 9000 | 9500 | 10000 |
Designed to preserve the structure of the products as far as possible, this system treats each raw material according to its specific structure and mixes it optimally, by completely eliminating friction during each mixing phase.
